Bluetooth Programming Instructions
Settings
There are several features of the the timer that you can customize based on a user programmable setting. Bluetooth ‘pairing’ is not required.
Start Delay Time
The start delay is programmable from 0 to 60 seconds in 1 second intervals. This is the time delay between when the timer flight sequence begins and when the motor starts up for take-off. This gives the pilot time to walk to the handle and get ready before the motor starts.
Flight Time
The flight time can be set from 1 second to 360 seconds (6 minutes) in 1 second intervals. This time begins when the motor reaches full flight RPM and lasts until the 3 second period of increased RPM just before the motor stops at the end of the flight.
Motor RPM
The governed RPM can be set from 5000 RPM to 15000 RPM in 10 RPM increments. This setting is the base RPM (or setpoint) that the PID control loop inside the timer will use to control the ESC. This control loop will work to maintain a constant RPM throughout the flight even as the battery voltage decreases.
Climb Gain
The climb gain is an arbitrary multiplier with a value from 0 through 10 (integer values only). This number is used to multiply the output of the accelerometer reading and adds the results to the setpoint to increase the RPM slightly when the model is in a climb. 0 turns the accelerometer input off and a setting of 10 would be the maximum RPM boost possible. Most pilots will likely use a setting between 4 and 6.
Dive Gain
The dive gain is an arbitrary multiplier with a value from 0 through 10 (integer values only). This number is used to multiply the output of the accelerometer reading and subtracts the results from the setpoint to decrease the RPM slightly when the model is in a dive. 0 turns the accelerometer input off and a setting of 10 would be the maximum braking effect possible. Most pilots will likely use a setting between 4 and 6.
Motor Acceleration
The motor acceleration is an arbitrary multiplier with a value from 1 through 10 (integer values only). This number is used to adjust the amount of time that the motor takes to startup at take-off. A setting of 1 is a very slow acceleration of the motor RPM and a setting of 10 is a very quick startup.
Number of Motor Poles
Enter the number of magnetic poles used in your motor. The timer needs this information in order to accurately calculate the RPM. The number of magnetic poles can be found in you motor documentation or by counting the number of magnet segments glued around the inside of the rotating part of the motor.
Last Lap Time
Enter the amount of time from 0 to 10 seconds that you would like the motor to run at normal speed after the short burst of high RPM at the end of the flight. If you prefer to use the short burst of high RPM to set-up for a better landing glide, set this time to 0. If you prefer the use the short burst of high RPM as a warning signal to indicate the end of the flight, enter a length of time that allows you prepare for landing.
Mounting Position
This programming option is only required if you want to install the timer in an orientation other than the default position shown in the assembly instructions. For further information and details of the programming procedure, please refer to the page titled Timer Mounting Position.
Overhead Boost
The overhead boost setting is an arbitrary multiplier with a value from 0 through 10 (integer values only). This number is used to adjust the amount of extra motor RPM that is added when flying high overhead. 0 turns the feature off and a setting of 10 would give the maximum boost in RPM when flying overhead. Most pilots will likely use a setting between 4 and 6.
The table below summarizes the programmable settings available and their default values:
Programmable Setting | Allowable Range | Default Setting |
---|---|---|
Start Delay Time | 0 to 60 | 10 Seconds |
Flight Time | 1 to 360 | 180 Seconds |
Motor RPM | 4000 to 15000 | 10000 |
Climb Gain | 0 to 10 | 5 |
Dive Gain | 0 to 10 | 5 |
Motor Acceleration | 1 to 10 | 5 |
Number of Motor Poles | 2 to 24 | 14 |
Last Lap Time | 0 to 10 | 0 |
Mounting Position | - | +Z, -X |
Overhead Boost | 0 to 10 | 5 |
Programming the Timer
Step 1 - Connect the battery and boot up the timer.
Step 2 - Tap your finger on the touch pin 5 times. The LED should turn a steady yellow (Programming mode, or more specifically Program Start Delay mode).
Step 3 - Open the Bluefruit Connect app on your phone. Give it a second to search for the timer and the Climb & Dive timer should show up.
Step 4 - Press the Connect button. After a connection is established, the next page will automatically open to display the modules available. Once connected the timer LED will change to a steady blue (BLE Program mode)
Step 5 - Select the UART module.
The UART module will open but the screen will be blank.

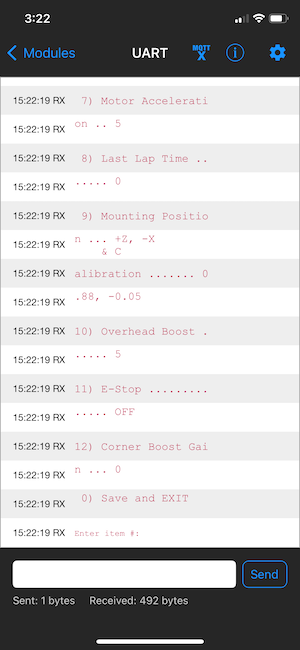

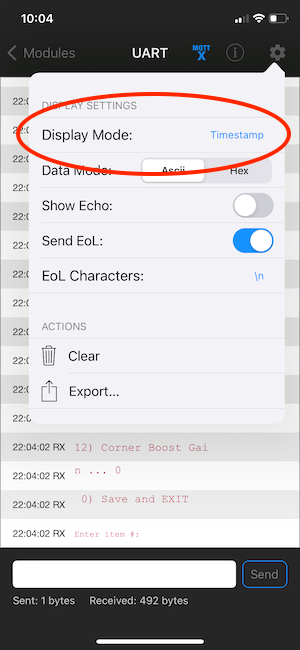

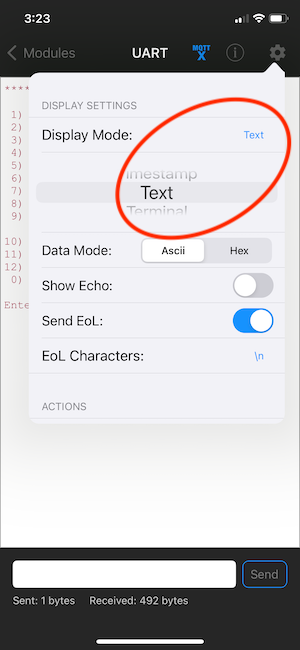

Step 6 - Tell the timer that you now have the screen open by hitting the Send button once. The timer will respond and list all of the current settings.
Step 7 - Enter the item number of the setting you would like to change into the text box then hit Send. The timer will then show the current setting and ask for the new one.
Step 8 - Enter the new setting you would like to use and press Send. The timer will then list all of the parameters again including the one you just changed.
Repeat steps 7 and 8 for any other settings you would like to change.
Step 9 - When you are finished enter item number 0 to save the settings and disconnect. The timer LED will change to green (Standby mode).
Step 10 - Tap on the Modules button in the top left of the screen to return to the Modules page. Then tap on the Disconnect button in the top left again to return to the opening screen. On the app main screen it is now safe to hit the OK button to disconnect and then close the app.
